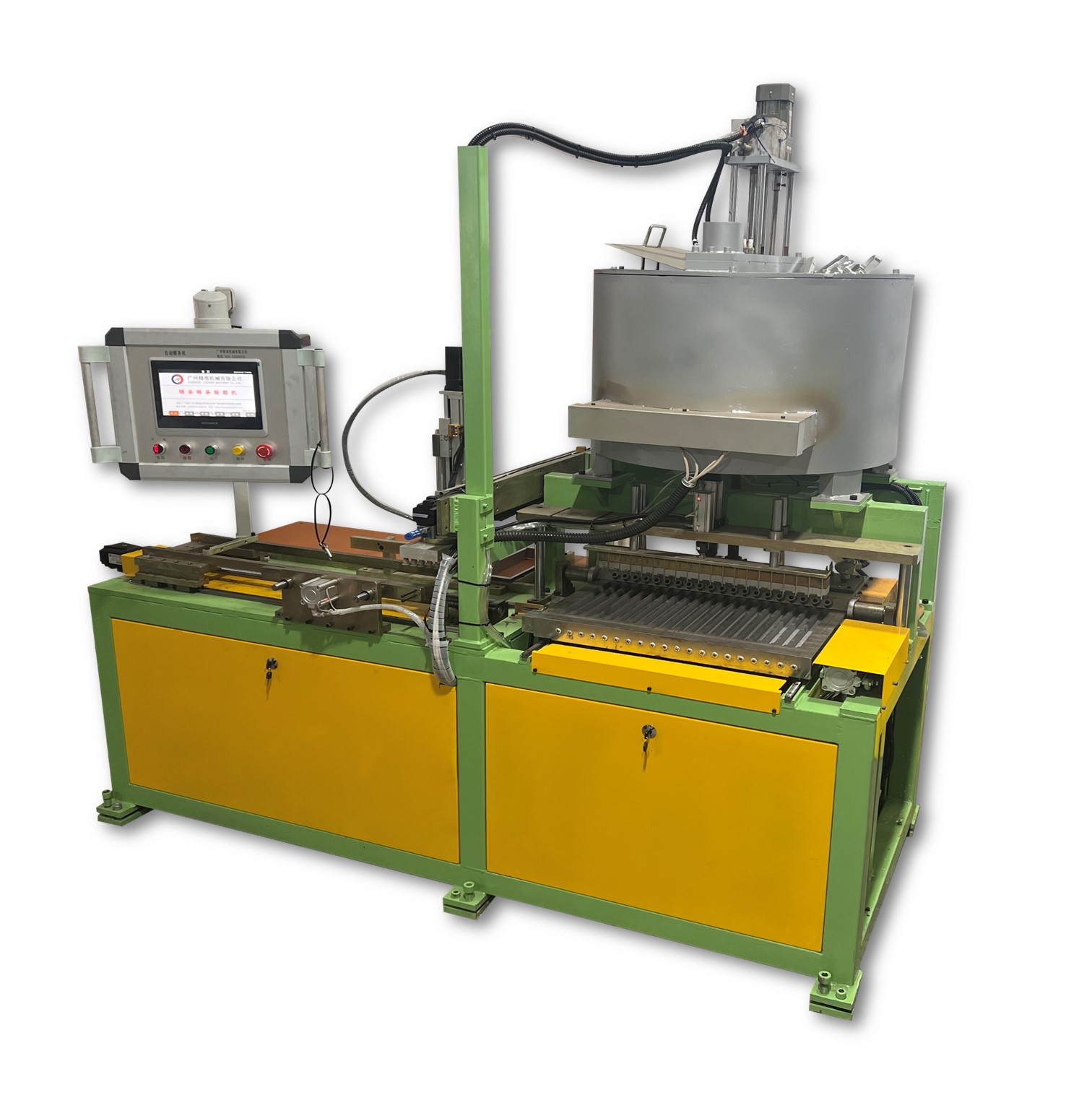

自動鑄條機是一款全自動化澆鑄錫條的設備，實現了從錫條澆鑄到自動裝箱的全自動化，由于單條錫條重量偏差所致，最后需要人工二次配重及封箱。

?The Automatic Casting Machine is a device that fully automates the casting of tin bars. It achieves full automation from casting to automatic boxing. Due to the weight deviation of a single tin bar, manual secondary weighing and boxing are required at the end.

?設備的主要技術參數

?Main Technical Parameters of the equipment:

?

一次澆鑄錫條數量：20條

Number of tin bars cast at one time: 20 bars

?錫條重量：1公斤/條

Weight of each tin bar: 1kg/bar

?

錫條外形尺寸：338X24X20(根據客戶要求或樣件）

Dimensions of each tin bar: 338X24X20 (according to customer requirements or sample)

自動化程度高，勞動強度低

High degree of automation, low labor intensity

?

生產效率高，產能高 此設備僅需一人操作，成品產能相當于傳統手工四人左右

High production efficiency and high output. Only one person is required to operate the equipment, and the output of finished products is equivalent to that of about four traditional manual workers.

?

高精度 澆鑄、自動整理、裝箱均由伺服電機完成

High precision. Casting, automatic trimming, and boxing are all completed by servo motors.

?

操作簡單，安全性高

Easy to operate, high safety.
